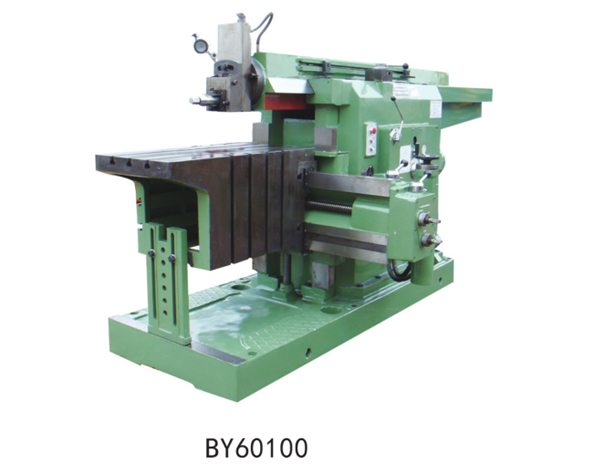

BY60100

名称

Name

Specifations

最大刨削长度

Max. cutting length

1000mm

最小刨削长度

Min.cutting length

150mm

滑枕工作度（无级）

Working speed of the ram

3-44m/min

滑枕底面至工作台的最大距离

Max. distance from the undersurface of ram to the worktable

400mm

最大切削力

Max. cutting force

20kn

刀架最大工作行程

Max. working distance of knife rest

160mm

刀架最大冋转角度

Max. swivel of knife rest

土60°

刀杆最大尺寸（宽X高)

Max.s\zeof tool bar( width X heiglit)

30X45mm

滑枕每次往复行程工作台水平方向

Ram stroke reciprocating table for each level

0.25-5mm( reciprocating

进给M范围

of the scope of the direction of feed

travel per time)

滑枕每次往复行程工作台垂直方向

Ram stroke each table vertically reciprocating

0.05-0.25mm (reciprocating

进给鼠范围

feed range

travel per time)

丁作台横向快速移动速度

Transverse rapid travelling speed of the worktable

3m/min

工作台垂直快速移动速度

Vertical movement of the worktable

0.15m/min

工作台上工作台面尺十（长X宽）

I'able area(length X w i d t h)

1000 X 500mm

工作台上工作台而中央T型梢梢宽

The width of the T-soh in the center of the worktable

22mm

工作台最人载

Max. deadweiglit of the worktable

320kgs

T作台M人横向行程

Max. lateral process of the worktable

800mm

刀架冋转角度时域人刨削长度

Max. cutting length when knife rest turn around

800mm

主电动机功率

Main motor power

7.5kw

主电动机转速

The ram of the main motor power

970r/min

工作台快速移动电动机功率

The motor power when the worktable quickly moved

l.lkw

工作台快速移动电动机转速

The ram when the worktable quickly moved

1400r/min

双联叶片泵CSYB,-63/63双联叶片

泵流虽

Fbwof duplex vane pumpCSYB 1-63/63

63 X 63(LXm)

机床外形尺寸（长X宽X高)

Overall Dimcnsions(L X W X H)

3610X 1545X 1827mm

机床敢蛍

The weight of the machine

4600kgs
