Home > All product > Brake disc lathe

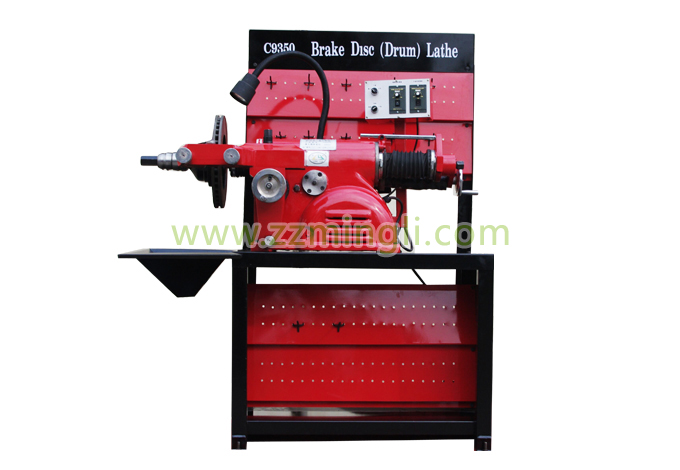

Brake disc lathe
C9350
C9350 Main usage and performance1、 The machine is main used for boring and repairing the brake drum and plate for pick-up truck、car and mini car.
2、 The machine use horizontal structure,low center of gravity and easy to clamping.
3、 Use bearing outer ring of brake drum as the locating datum,use dabber and tabber and taper sleeve can easy to made clamping、boring and repairing the brake drum come true.
4、 The machine are good in rigidity、quite in cutter speed、high in efficiency.In general you only should turning one time ,the machine can reach your accuracy requirement.
5、 The machine is variable speed control without step,easy to operate ,easy to repair,on the safe side .
| Main Specification | |
| 切削直径范围 Range of processing |
制动鼓(Brake drum) 152-500mm |
| 制动盘(Brake plate) 180-330mm | |
| 加工制动鼓深度 Max depth of processing brake drum |
175mm |
| 主轴转速 Spindle Speeed |
70、80、115r/min |
| 走刀量 Speed |
0.05-0.5mm |
| 最大切削深度 Max processing depth |
0.5mm |
| 电机功率 Machine power |
0.75kw/1400r/min/380v |
Time:2017/3/7 10:42:16 Hits:884
