CNC lathe

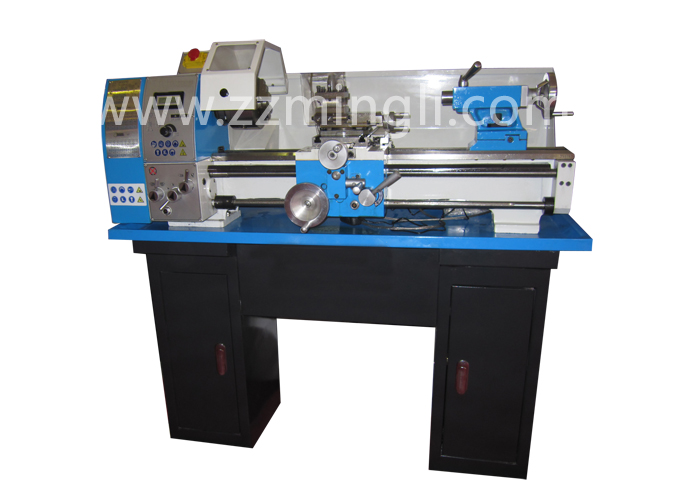

Bench lathe JY250
|
Bench lathe JY250 技术参数Specifications |
||
| 两顶尖最大距离 | Max.distance between two centers | 500mm |
| 床身上最大回转直径 | Max.swing over bed | 250mm |
| 刀架上最大回转直径 | Max.swing over carriage | 145mm |
| 主轴锥孔/通孔 | Taper of spindle nose | MT4/26mm |
| 主轴转速 | Spindle speed range(6steps) | 125-2000/50-2000rpm |
| 车削公制螺纹 | Metric thread cutting | 0.2-3.5mm(20 kinds) |
| 车削英制螺纹 | Inch thread cutting | 8-56/1mm(20 kinds) |
| 纵向进给量 | Range of longitudinal feeds | 0.07-0.4mm/rev |
| 小刀架最大行程 | Max.travel of tool post | 60mm |
| 尾架套筒锥度 | Taper of taistock sleeve | MT2 |
| 电机 | Motor | 0.55kw |
| 机床外形尺寸 | Overall dimension | 1150*560*570mm |
| 机床净重 | Net weight | 150kg |
