Home > All product > CNC lathe
CNC lathe

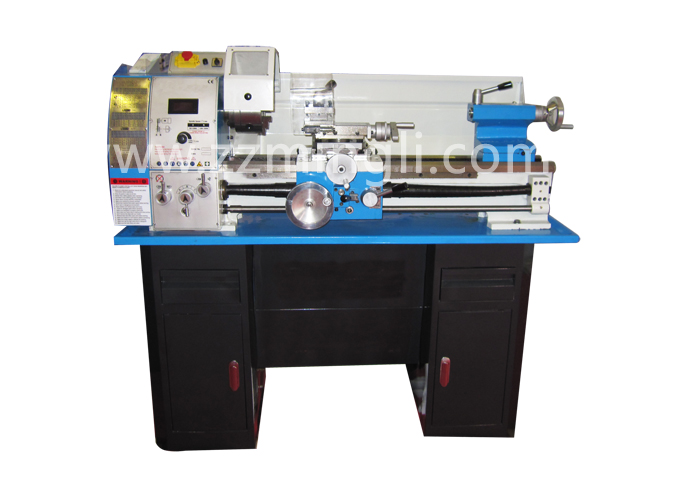

Bench lathe JY280
|
Bench lathe JY280 |
技术参数 Specifications |
|
| 两顶尖最大距离 | Max.distance between two centers | 700mm |
| 床身上最大回转直径 | Max.swing over bed | 280mm |
| 刀架上最大回转直径 | Max.swing over carriage | 165mm |
| 主轴锥孔/通孔 | Taper of spindle nose | MT4/26mm |
| 主轴转速 | Spindle speed range(6steps) | 125-2000/50-2000rpm |
| 车削公制螺纹 | Metric thread cutting | 0.2-3.5mm(20 kinds) |
| 车削英制螺纹 | Inch thread cutting | 8-56/1mm(20 kinds) |
| 纵向进给量 | Range of longitudinal feeds | 0.08-0.4mm/rev |
| 小刀架最大行程 | Max.travel of tool post | 80mm |
| 尾架套筒锥度 | Taper of taistock sleeve | MT2 |
| 电机 | Motor | 0.75kw |
| 机床外形尺寸 | Overall dimension | 1400*700*680mm |
| 机床净重 | Net weight | 151kg |
